罐壁式清洗噴嘴的工作原理?

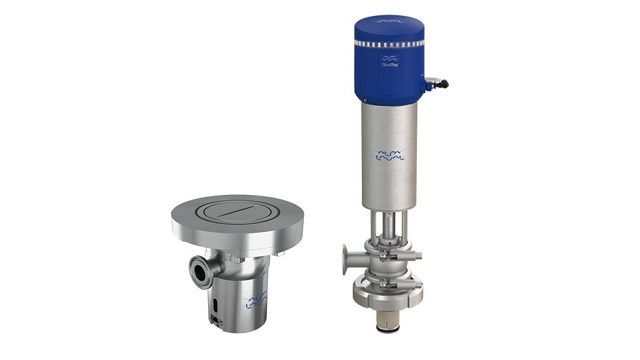

Installed flush with the surface of the tank wall or bottom, a wall mounted tank cleaning nozzle contains a spring-activated piston, which opens and closes the nozzle depending on the pressure of the cleaning media. It is available in two versions: media driven or air-operated. During the Cleaning-in-Place process, the pressure created by the cleaning media activates the media-driven version, while the pneumatic air-operated version has an actuator, which automatically opens the nozzle by means of controlled air pressure. When activated, the wall mounted nozzle sprays a high impact fan of cleaning media directly toward the soiled area. Through controlled and repeated rotation of the equipment with shadow areas, such as agitator blades, the wall mounted tank cleaning nozzle hits the shadow areas, ensuring 100% cleaning coverage and high-precision, high-impact cleaning. Upon completion of the cleaning cycle, the integrated spring mechanism returns the piston to its original position, securely closing and sealing off the wall mounted cleaning nozzle. If purging is required, always operate with actuator.

Safeguard cheese production with 100% cleaning coverage of tank shadow areas

To increase cheese production by expanding its milk reception, a large Scandinavian dairy turned to the Beritech Group, an experienced tank and system builder. The objective was to guarantee complete cleaning coverage for two new 30-metre-high raw milk silos with bottom-mounted agitators.

Read the case story here
